SPECIFICATION:-

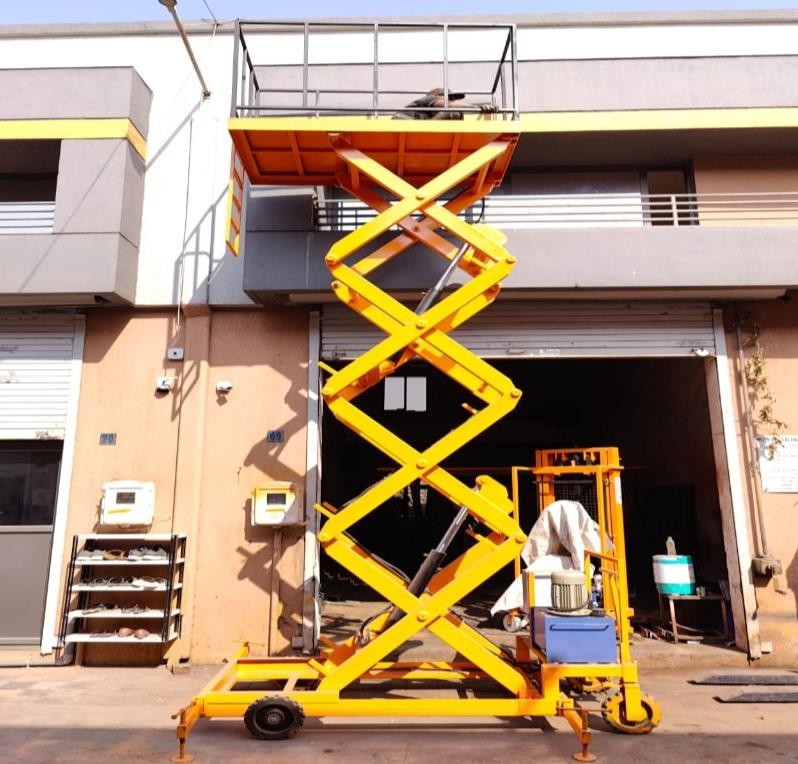

| Scissor Lift | ||
| Scope: Supply of Scissor lift 1 ton capacity | ||
| Delivery Period: Supply within 4 months from the date of placement of purchase offer. | ||
| Quantity: 1 no. | ||
| Technical Specifications for Scissor lift 1 ton capacity | ||
S No: |
Specification | Description |
1. |
Loading Capacity | 1000 kg. |
2. |
Minimum Lifting Height | 5 m |
3. |
Platform Size (L x W) | 1.8m X 1.00m (+/- 100 mm) |
4. |
Overall Dimensions(L*W*H) | 1.85*1.24*1.1 m (+/- 100 mm) |
5. |
Lifting Time | Under 2 minutes to maximum height |
6. |
Power Voltage | AC 440V |
7. |
Weight | 950 kg (+/- 100 KG) |
8. |
Tyre | Solid tyre |
| Additional Requirements for the Scissor Lift | ||
| 1. The platform should have anti skid floor | ||
| 2. The control panel shall be available on the platform & ground | ||
| 3. The operation voltage on the platform shall be 24V | ||
| 4. Emergency stop button shall be available on the platform and ground | ||
| 5. Hose burst valve safety | ||
| 6. Fence shall be available on the platform | ||
