SPECIFICATION:-

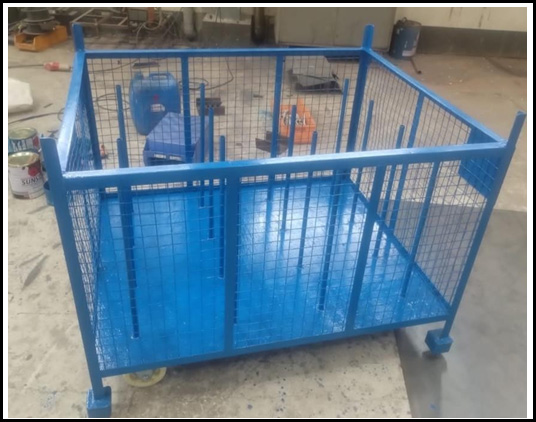

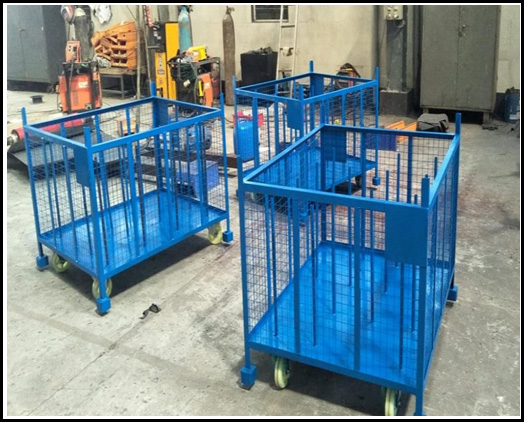

| PART NAME: CAPARO TROLLEY | |||
| PART SIZE: 1070 X 1300 X 950 mm | |||
| TROLLEY WEIGHT: 116 kgs. | |||
| CARRYING CAPACITY: 500 KGS MAXIMUM | |||
| MATERIAL DESCRIPTION REQUIREMENT | |||
| RAW MATEIAL (MS ANGLE, CHANNEL, ROD, FLAT, PIPE & SHEET /PLATE) | |||
| NAME | LENGTH IN MM | SIZE IN MM | NO. OF PCS. |
| MS ANGLE MAKE FOR SQ. PIPE | 900 | 30 X 30 X 50 | 4 |
| MS ANGLE | 1300 | 30 X 30 X 5 | 5 |
| MS ANGLE | 1070 | 30 X 30 X 5 | 6 |
| MS ANGLE | 150 | 30 X 30 X 5 | 4 |
| MS ANGLE | 60 | 30 X 30 X 5 | 4 |
| MS ROUND PIPE | 580 | 20 MM OD | 16 |
| MS SQUARE PIPE | 50 | 75 X 75 X 3 | 4 |
| MS FLAT | 690 | 30 X 5 | 6 |
| MS FLAT | 1300 | 30 X 5 | 2 |
| MS SHEET NAME PLATE | 200 X 200 X 3 MM | 1 | |
| MS SHEET BOTTOM | 1070 X 1300 X 3 MM | 1 | |
| MS WHEEL PLATE | 250 X 150 X 6 MM | 4 | |
| MS WIREMESH 37 SQ. FOOT | 40 X 40 ( 2 MM DIA ROD) | ||
